Research project · Published

Honeybee–Tree-Frog Wet Adhesive Surface

2025

Collaborative research · Co-author

Read paper

Overview

How can a textured surface maintain contact when liquid accumulates between an adhesive and the skin?

Biological inspiration, surface architecture and wearable application.

My Work

Surface design

Contribute to wet-adhesion research combining tree-frog-inspired pillars with honeybee-inspired frames in a micro-nano hierarchical surface.

Interface mechanics

Investigate liquid-film splitting and confined wetting to connect surface geometry with normal and shear adhesion.

Hierarchical surface design

Honeybee-inspired concavities and tree-frog-inspired pillars form the textured wet adhesive interface.

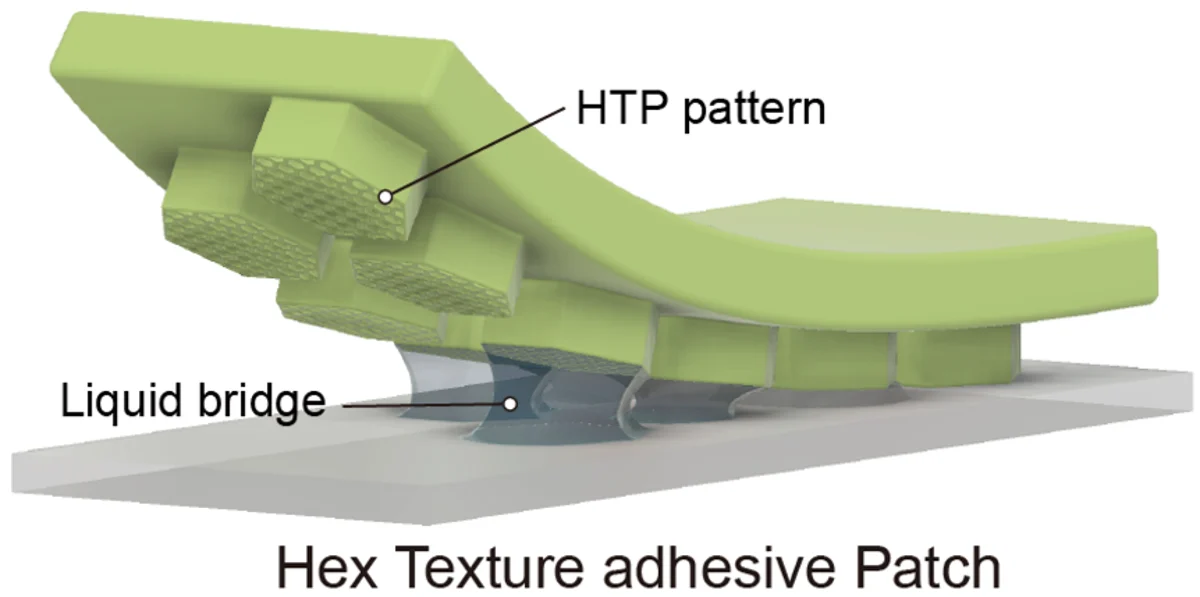

**Fig. 1.** Contact-interface design with confined liquid bridges.PPT · slide 28

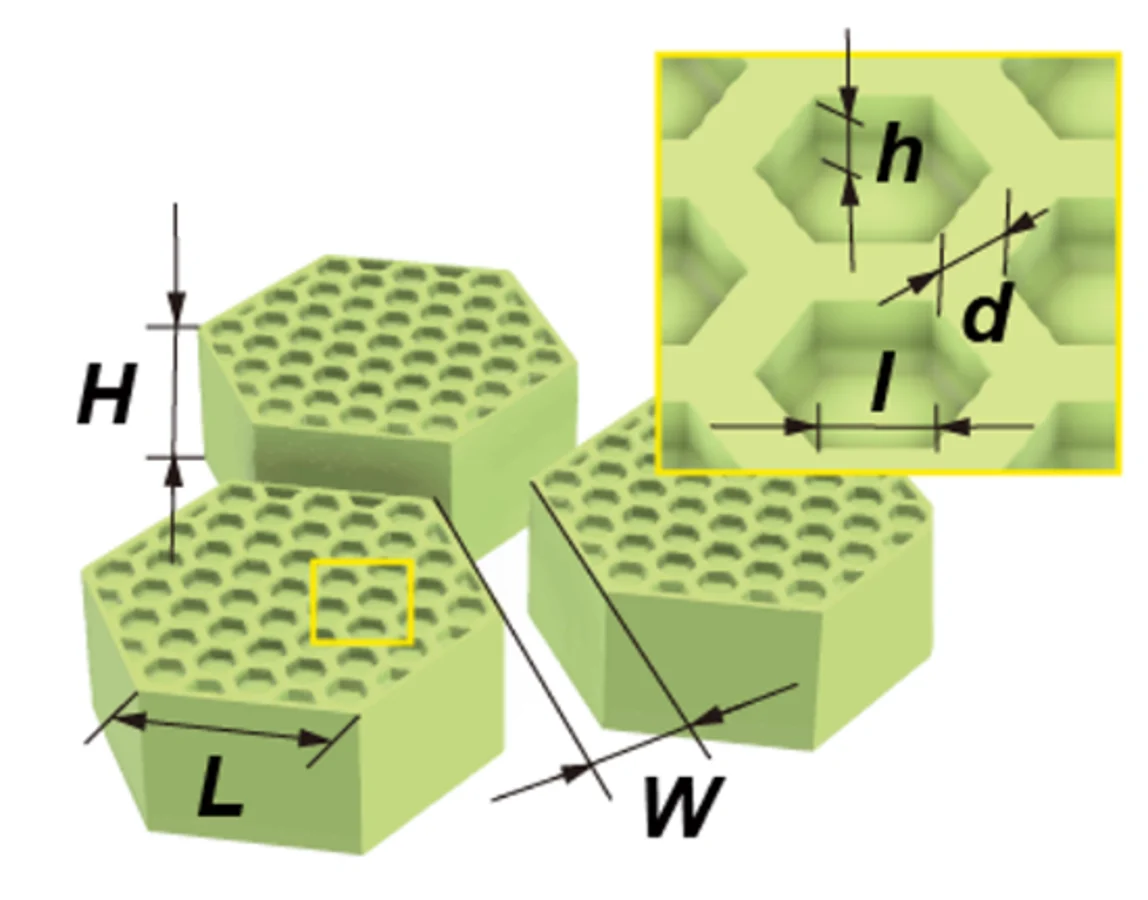

**Fig. 2.** Geometry and dimensions of the hierarchical surface.PPT · slide 28

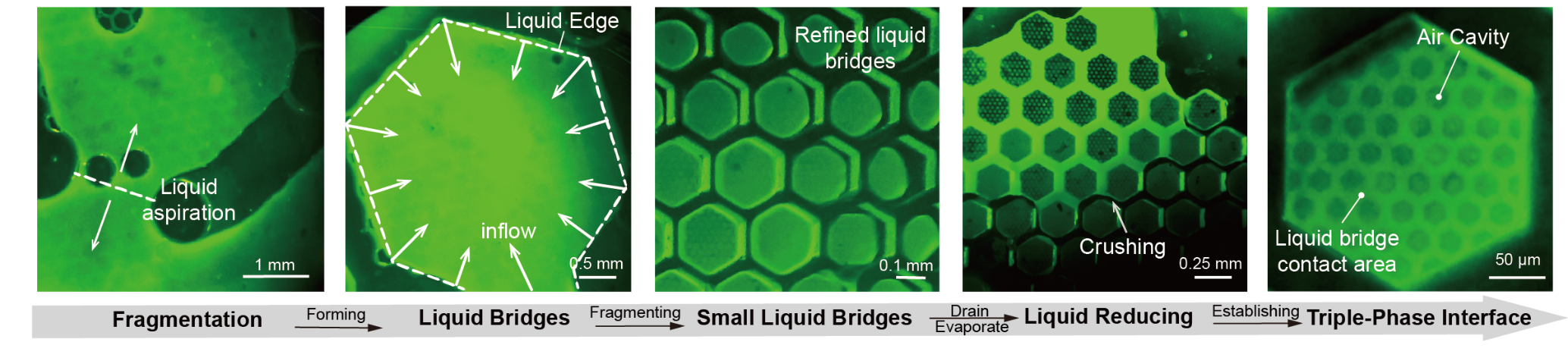

Liquid-film observation

Interface observations show how liquid distributes around the microstructures during contact.

Normal and shear adhesion

Mechanical comparisons connect microstructure geometry and wetting conditions to adhesive performance.

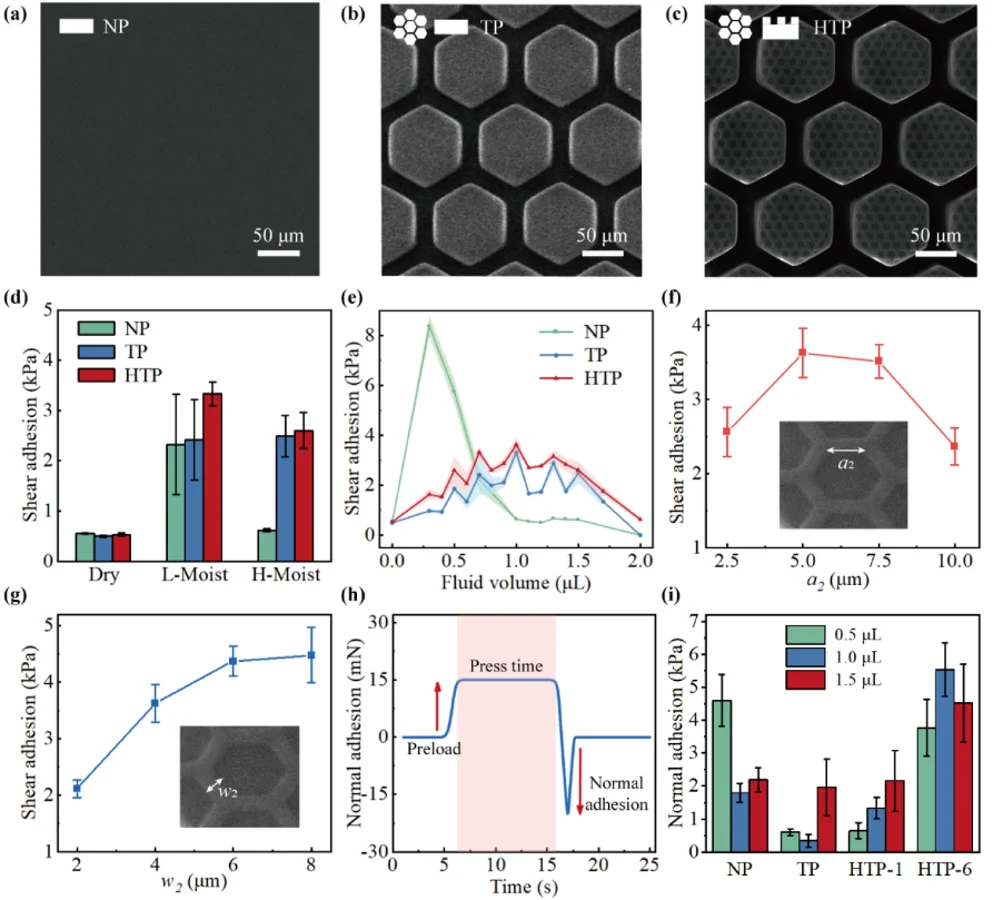

**Fig. 4.** Surface characterization and comparative adhesion measurements.PPT · slide 27

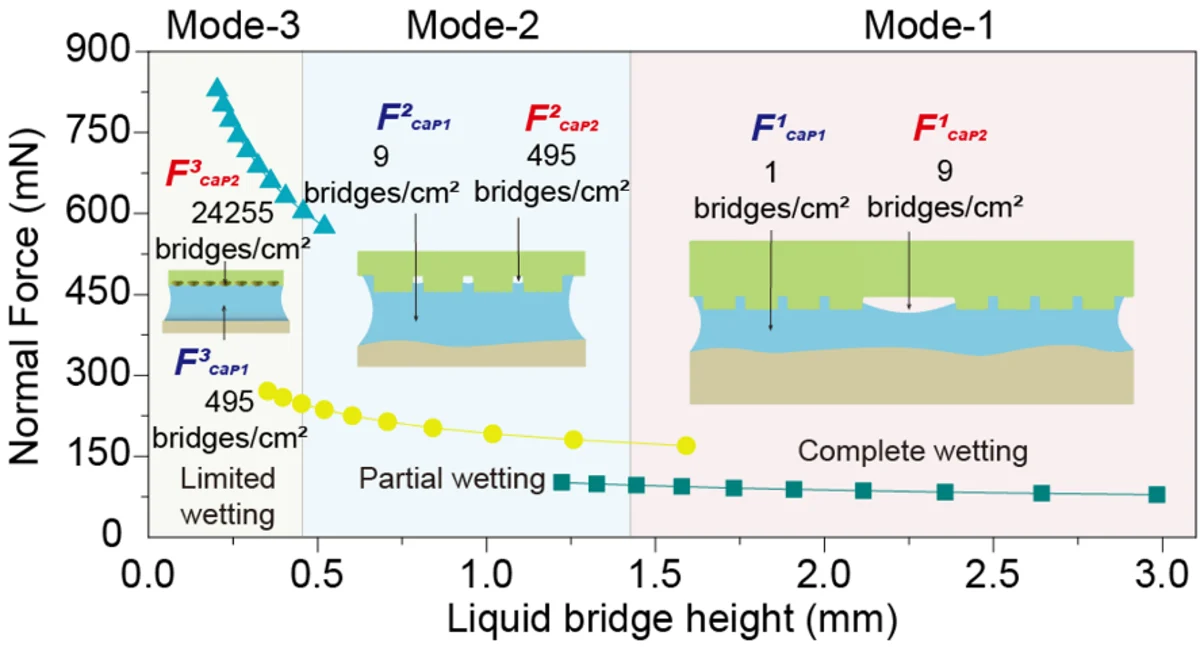

**Fig. 5.** Normal adhesion model across different liquid-bridge regimes.PPT · slide 29

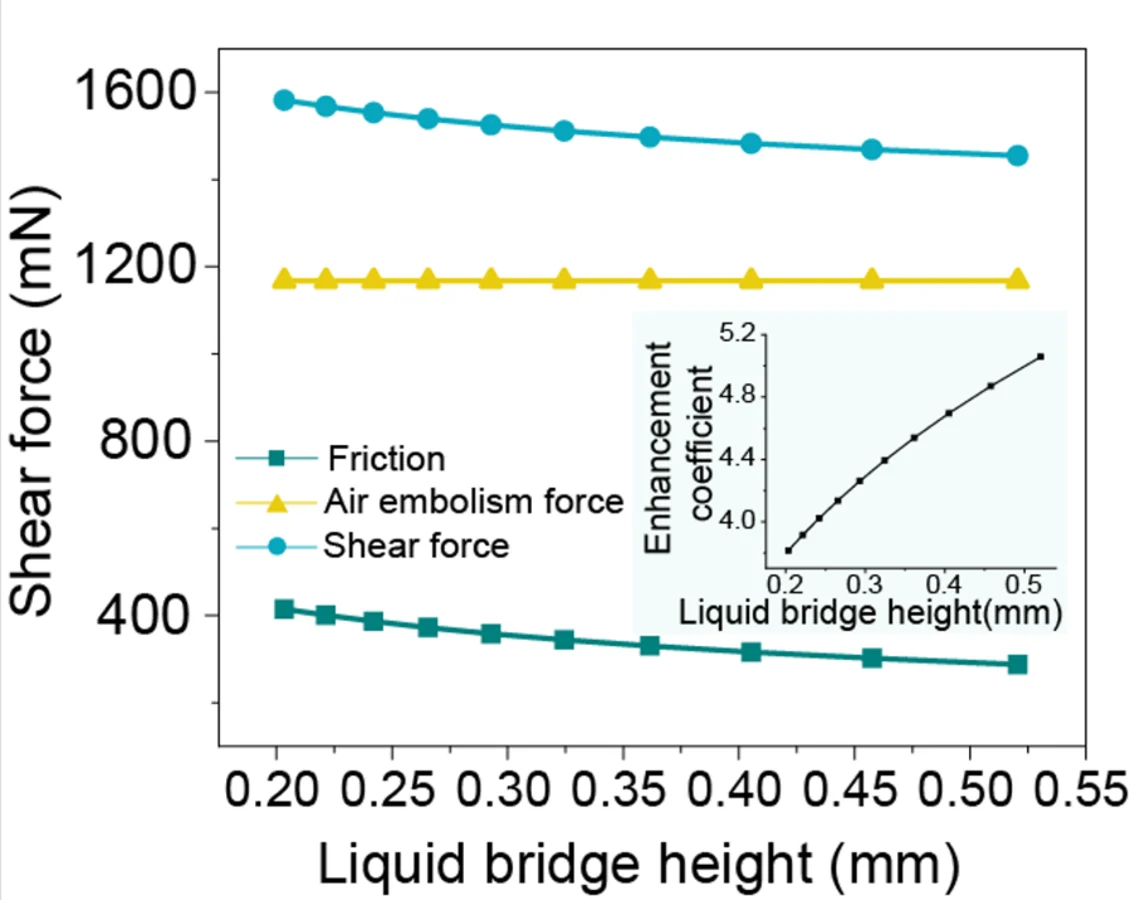

**Fig. 6.** Shear response as a function of liquid-bridge height.PPT · slide 29

Results

Published as “Bionic Wet Adhesive Surface with Micronano Hierarchical Structure for Robust Biosignal Monitoring” in ACS Applied Materials & Interfaces (2025).
